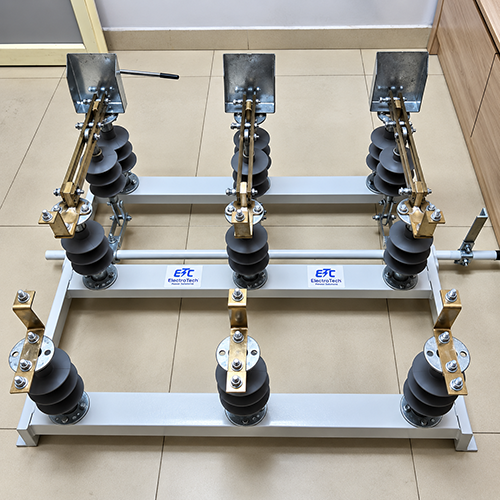

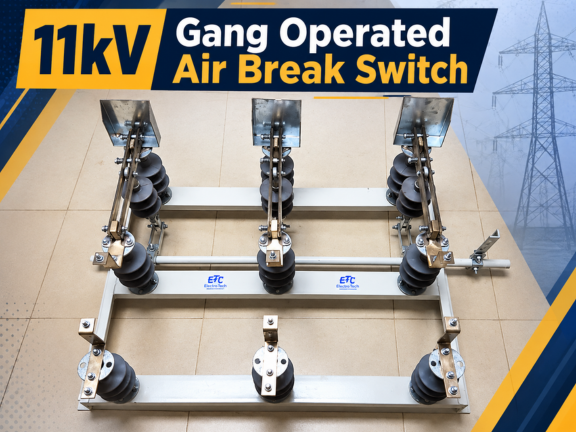

11kV Gang Operated Air Break Switch
The 11kV Gang Operated Air Break Switch is designed for coordinated three-phase switching through a mechanically linked operating arrangement. The gang-operated mechanism allows the phases to be operated together instead of requiring separate manual operation of each phase.
This type of switch can be used where visible isolation and dependable mechanical operation are required in outdoor medium-voltage installations.
Key characteristics include:
- Three-phase gang-operated mechanism
- Air-insulated switching arrangement
- Suitable for outdoor medium-voltage applications
- Visible contact position for isolation
- Robust mechanical construction
- Suitable for utility and industrial distribution systems
- Practical operation and maintenance
- Configuration options based on installation requirements

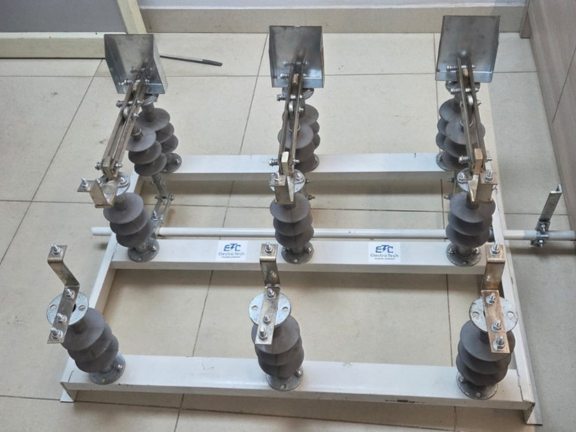

11kV GOAB Switch for Distribution Applications
An 11kV GOAB Switch combines gang operation with an air-break switching arrangement. It is commonly considered for distribution networks where operators need a practical method of sectionalising or isolating parts of an electrical system.
The operating mechanism can be arranged for manual operation from ground level, depending on the installation design. Proper mounting, clearances, earthing and operating arrangements should always follow the applicable electrical standards and project specifications.
Electrotech can support customers in identifying an appropriate switching configuration based on the voltage level, installation environment, mounting arrangement and application.
Applications of 11kV Air Break Switch
The 11kV Air Break Switch can be used across different medium-voltage electrical installations where switching and isolation are required.
Typical applications include:
- Electrical distribution networks
- Outdoor substations
- Industrial power distribution
- Transformer installations
- Feeder isolation
- Distribution line sectionalising
- Utility infrastructure
- Commercial and industrial electrical systems
- Power distribution projects
The appropriate switch configuration depends on the electrical system, fault conditions, operating requirements and installation environment. Technical selection should therefore be carried out according to the project specifications and relevant standards.

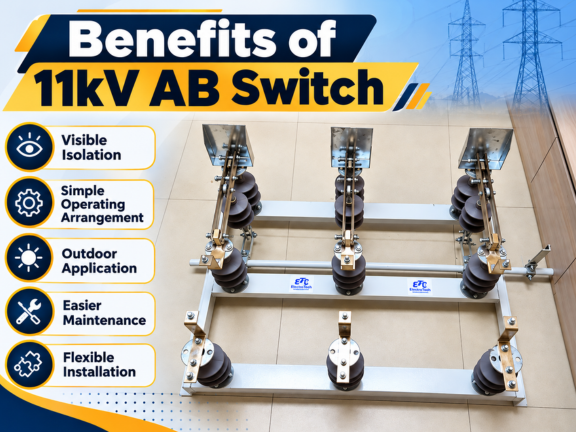

Benefits of 11kV AB Switch
Selecting a suitable 11kV AB Switch can provide several practical advantages for medium-voltage distribution systems.
Visible Isolation
The open position of an air-break switch can provide a visible indication of isolation when the equipment is correctly installed and used for its intended purpose. This can assist authorised personnel during maintenance and system sectionalising procedures.
Simple Operating Arrangement
The gang-operated mechanism allows multiple phases to be operated together. This provides a straightforward approach to switching compared with individually operated phase arrangements.
Outdoor Application
The construction of suitable 11kV air-break switching equipment makes it useful for outdoor distribution installations, subject to appropriate environmental protection and installation requirements.
Easier Maintenance
A practical mechanical arrangement can simplify inspection and routine maintenance activities. Regular inspection remains important to ensure continued reliable operation.
Flexible Installation
Depending on the selected configuration, these switches can be incorporated into different distribution and substation arrangements.
Why Choose Electrotech?
Electrical switching equipment plays an important role in the safe and controlled operation of medium-voltage networks. Electrotech aims to provide solutions that balance reliable operation, practical design and application-specific requirements.
Application-Focused Solutions
Every electrical installation has different requirements. Electrotech can help customers evaluate the appropriate switch arrangement based on voltage, mounting, operating mechanism and site conditions.
Quality-Oriented Construction
Switching equipment needs to withstand regular operation and the environmental conditions associated with its installation. Attention to construction and component selection is therefore important when choosing an 11kV switching solution.
Technical Support
From product selection to application-related requirements, technical guidance can help customers identify a suitable configuration for their project.
Suitable for Multiple Sectors
Our medium-voltage switching solutions can be considered for utility, industrial, infrastructure and commercial electrical applications.
Practical Design
A well-designed switching arrangement should be straightforward to operate, inspect and maintain. Electrotech focuses on practical solutions suited to real-world electrical distribution requirements.
How to Select the Right 11kV GO-DO Switch?
Before selecting an 11kV GO-DO Switch, several technical factors should be considered.
1. Confirm the System Voltage
Verify that the switch is suitable for the nominal system voltage and insulation requirements of the installation.
2. Identify the Application
Determine whether the switch will be used for feeder isolation, transformer connection, sectionalising or another distribution function.
3. Check Current Requirements
The continuous current rating should correspond to the expected operating load of the electrical system.
4. Consider Installation Conditions
Outdoor location, mounting structure, environmental exposure and available operating space should be evaluated.
5. Review Operating Mechanism
The required manual or gang-operated arrangement should be selected according to the project design.
6. Verify Applicable Standards
The selected equipment should comply with the relevant project specifications, electrical standards and statutory requirements.
Industries and Applications Served
Electrotech's medium-voltage switching solutions can be considered across a variety of applications, including:
- Power distribution companies
- Industrial plants
- Manufacturing facilities
- Electrical substations
- Infrastructure projects
- Commercial power systems
- Renewable and utility-related installations
- Transformer and feeder installations
- EPC and electrical contracting projects
The exact product configuration can be selected according to the electrical and mechanical requirements of each project.
Get the Right 11kV Switching Solution from Electrotech
Choosing suitable medium-voltage switching equipment is important for dependable electrical distribution and practical system isolation. Electrotech can assist with application-oriented solutions based on your project requirements, installation conditions and technical specifications. Contact our team to discuss your requirement for an 11kV GO-DO Switch, 11kV Gang Operated Air Break Switch, 11kV GOAB Switch, 11kV Air Break Switch or 11kV AB Switch and request product details or technical assistance.
